Spuhr Rychloupínací předsazená montáž pro puškohledy s tubusem 34 mm, výška 38mm, bez sklonu

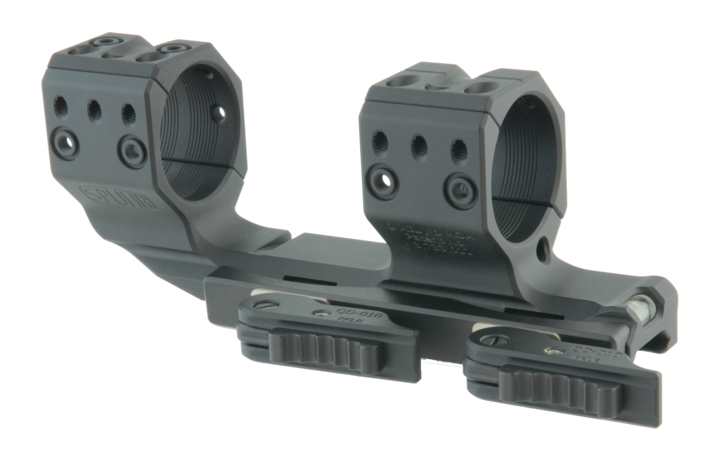

Spuhr QDP-4016 is a cantilever quick-detach mount for riflescopes with a 34 mm tube, designed for AR-15 / AR-10 platforms and firearms with a Picatinny rail. It is part of the Spuhr QDP (Quick Detach Picatinny) system, which allows fast mounting and removal of optics while maintaining very high return-to-zero repeatability.

This variant has a height of 38 mm (1.5") to the tube centerline and zero cant (0 MOA / 0 MIL), making it suitable for standard zeroing without any built-in ballistic correction in the mount. The cantilever construction shifts the optic forward for proper eye relief on AR platforms and allows the use of larger objectives (typically 50–56 mm).

The mount is milled from a single piece of aluminum and uses lateral QDP quick-release levers, which provide a secure hold on the Picatinny rail and stability even under heavy recoil. The system is designed for repeated removal and reattachment without loss of zero.

Key features:

• cantilever QD mount for 34 mm optics
• height 38 mm (1.5") to tube centerline
• cant 0 MOA / 0 MIL
• quick-detach Spuhr QDP system
• compatible with Picatinny / STANAG 4694
• monolithic CNC construction for maximum rigidity
• optimized for AR platforms and long riflescopes
• high repeatability upon remounting

Technical specifications:

• Model: QDP-4016
• Manufacturer: Spuhr
• Type: quick-detach cantilever mount
• Tube diameter: 34 mm
• Height: 38 mm (1.5")
• Cant: 0 MOA / 0 MIL
• Attachment: Picatinny
• Material: aluminum alloy (CNC)
• Weight: approx. 270 g
• Body length: approx. 151 mm
