Vortex Diamondback 3.5-10x50 BDC

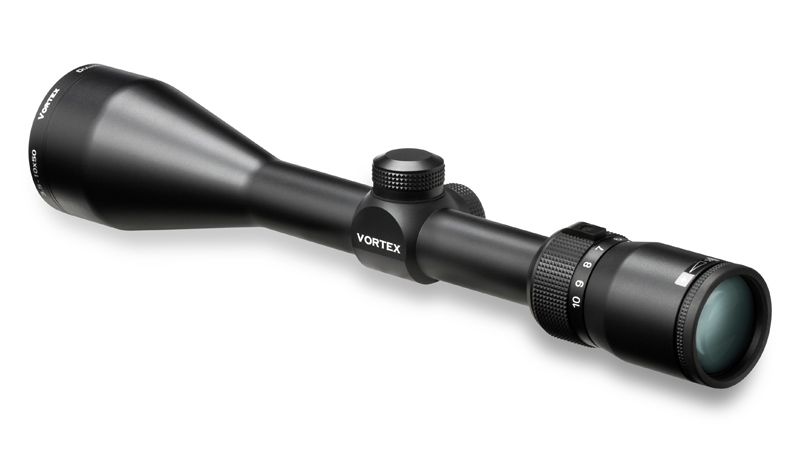

Diamondback 3.5-10x50 Rifle Scope
Vortex (USA)
Vortex (USA)
- Diamondback series rifle scopes deliver surprising optical performance for their price and can withstand recoil from even heavier firearms
- All models feature a single-piece tube made from aircraft-grade aluminum
- They are waterproof and argon-purged, so they won't fog up
- They are shockproof and have a matte, hard-anodized finish
- The scope's adjustments are in MOA (1 click = 1/4 MOA – 7.35 mm at one hundred meters)

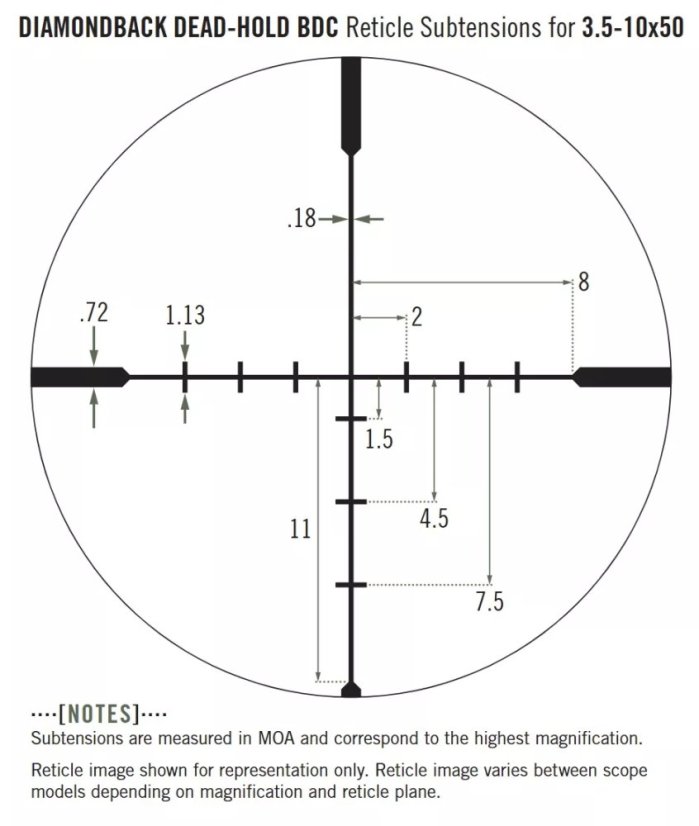

- This is a second focal plane model (the reticle size does not change with the set magnification; rangefinding features are accurate at 10x magnification)
Retail sales: YES
Wholesale sales: YES
Parameters
| Export outside the Czech Republic | no |
|---|---|
| Magnification | 3.5-10x50 |
| Objective Diameter | 50 mm |
| Length | 31.75 cm |
| Tube Diameter | 1" (25.4 mm) |
| Field of view (at 100 m) | 11.92 to 4.49 m |
| Magnification (magnification) | 3.5-10x |
| Exit Pupil Distance (eye relief) | 84 mm |
| Illumination | NO |
| Zero Stop | NO |
| Elevation Correction Range (elevation) | 65 MOA |
| Windage Correction Range (windage) | 65 MOA |
| Parallax | Fixed (from 92 m) |
| Focal plane | second (reticle size does not change) |
| Sight type | standard |
| Click Size | 1/4 MOA |
| One rotation turret | 15 MOA |
