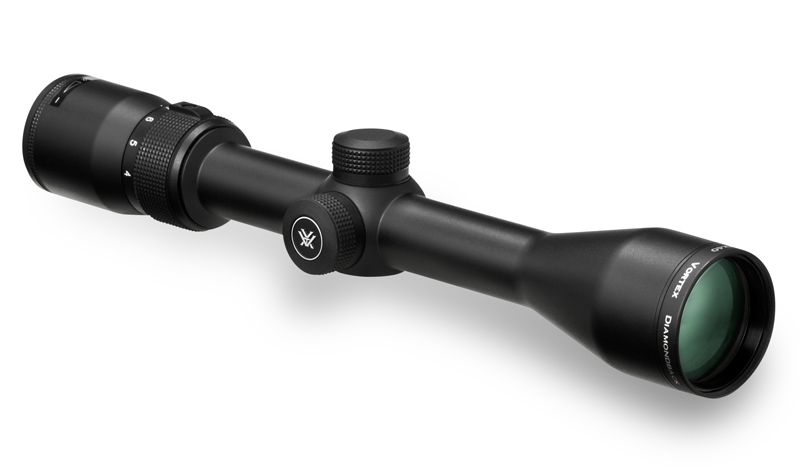

Riflescope Vortex Diamondback 4-12x40 Dead-Hold BDC
Diamondback 1.75-5x32 Dead-Hold BDC
Vortex Optics (USA)
Diamondback Rifle Scope – packed with features! First of all, it is machined from a single piece of aircraft-grade aluminum, making it virtually indestructible and capable of handling even magnum calibers. The argon-filled body prevents fogging, O-rings prevent moisture and debris from entering, and anti-reflective coatings ensure a crystal-clear image. All this and much more can be expected from a rifle scope that, at first glance, should cost a bit more – but it doesn't.
- Anti-reflective coatings on all external optical surfaces for a crystal-clear image

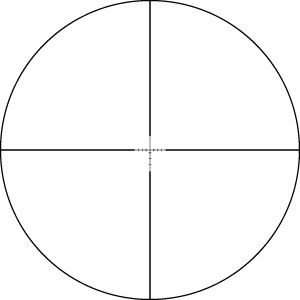

- Second focal plane – the reticle remains the same size at all magnifications
- Scope body machined from a single piece of aircraft-grade aluminum; tube diameter is 1 inch (25.4 mm)
- Rugged construction ensures resistance to impact and recoil; rubber O-rings provide waterproofing and protection against dust and debris; inert argon fill ensures fog-proof performance
Retail sales: YES
Wholesale sales: YES
Technical specifications
| Magnification | 4-12x |
| Objective diameter | 40 mm |
| Eye relief | 79 mm |
| Field of view at 100 m | 10.8 - 3.8 m |
| Tube diameter | 1" (25.4 mm) |

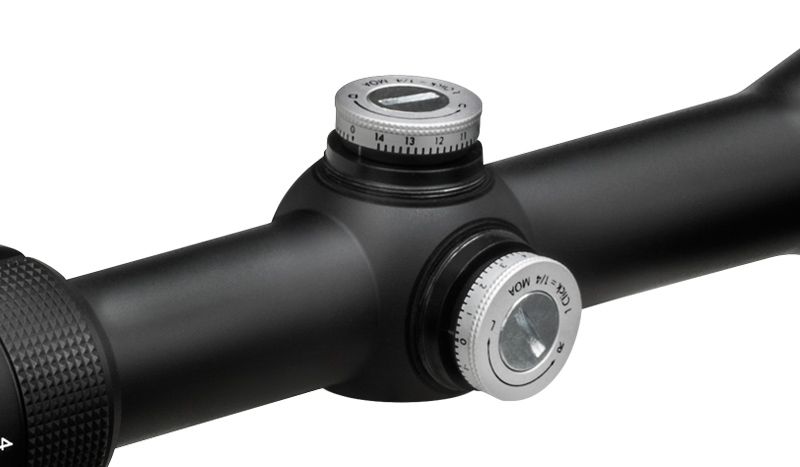

| Click value | 1/4 MOA |
| One turret revolution | 15 MOA |
| Elevation adjustment range | 60 MOA |
| Windage adjustment range | 60 MOA |
| Parallax | 91.4 m |
| Length | 305 mm |
| Weight | 414 g |
Parameters
| Export outside the Czech Republic | no |
|---|---|
| Magnification | 4-12x40 |
| Tube Diameter | 1" |
| Focal plane | second (reticle size does not change) |
